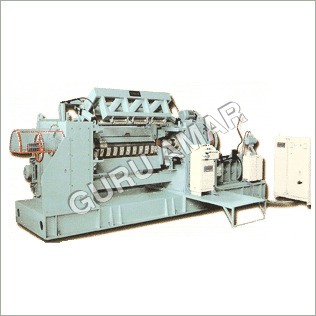

Mobile Rotary Veneer Lathe

Mobile Rotary Veneer Lathe

Backed by rich industry experience and knowledge, we have been able to manufacture, export and supply a broad range of Mobile Rotary Veneer Lathe  that is equipped with single spindles. This lathe machine is majorly used in wood processing industry for peeling various types of logs. The offered lathe machine is fabricated by our diligent professionals using premium grade components with the aid of latest techniques to meet the quality guidelines as per the global authorities. Furthermore, this Mobile Rotary Veneer Lathe  is available in different specification at industry leading price.

Mobile Rotary Veneer Lathe Features:

• Heavy-Duty Construction And High-Speed Technology
• Easy Operations And Operator Friendly
• Completely Electrical Control Panel
• Utilization Of Back-Up Roll System
• Utilization Of Pneumatic And Hydraulic Functions
• Use Of Screw Type Motorized Spindle
• Especially Designed For Peeling Of Small And Medium Diameter Logs
• Utility For Extra Veneer Recovery
• Innovative Design To Meet Core Veneer Production Needs
• Suitable For Plantation Wood And Tropical Wood Species

Technical Specifications

• Cutting Knife Length - 1270 mm

• Max. Log Diameter - 750 mm

• Diff. Veneer Thickness - 1.0 mm ~ 3.00 mm

• Min. Block Length to be Peeled - 950 mm

• Min. End Core Diameter - 50 mm

• Max. Spindle Revolution - 300 rpm (5-speed Gear box System)

• Total Power Required - 34 Kw / 22.5 Kw
